GStreamer - ZED Sensors CSV Sink

The ZED Sensors Data CSV Sink, zeddatacsvsink GStreamer element, is a sink that allows logging ZED Mini and ZED2 sensors data to a CSV file.

The source code of this plugin is a complete example of how to process the ZED metadata in a GStreamer element to retrieve sensor data.

Properties

$   append              : Append to an already existing CSV file
$                         flags: readable, writable
$                         Boolean. Default: false
$   async               : Go asynchronously to PAUSED
$                         flags: readable, writable
$                         Boolean. Default: true
$   blocksize           : Size in bytes to pull per buffer (0 = default)
$                         flags: readable, writable
$                         Unsigned Integer. Range: 0 - 4294967295 Default: 4096
$   enable-last-sample  : Enable the last-sample property
$                         flags: readable, writable
$                         Boolean. Default: true
$   last-sample         : The last sample received in the sink
$                         flags: readable
$                         Boxed pointer of type "GstSample"
$   location            : Location of the CSV file to write
$                         flags: readable, writable
$                         String. Default: ""
$   max-bitrate         : The maximum bits per second to render (0 = disabled)
$                         flags: readable, writable
$                         Unsigned Integer64. Range: 0 - 18446744073709551615 Default: 0
$   max-lateness        : Maximum number of nanoseconds that a buffer can be late before it is dropped (-1 unlimited)
$                         flags: readable, writable
$                         Integer64. Range: -1 - 9223372036854775807 Default: -1
$   name                : The name of the object
$                         flags: readable, writable, 0x2000
$                         String. Default: "zeddatacsvsink0"
$   parent              : The parent of the object
$                         flags: readable, writable, 0x2000
$                         Object of type "GstObject"
$   processing-deadline : Maximum processing time for a buffer in nanoseconds
$                         flags: readable, writable
$                         Unsigned Integer64. Range: 0 - 18446744073709551615 Default: 20000000
$   qos                 : Generate Quality-of-Service events upstream
$                         flags: readable, writable
$                         Boolean. Default: false
$   render-delay        : Additional render delay of the sink in nanoseconds
$                         flags: readable, writable
$                         Unsigned Integer64. Range: 0 - 18446744073709551615 Default: 0
$   stats               : Sink Statistics
$                         flags: readable
$                         Boxed pointer of type "GstStructure"
$                                                         average-rate: 0
$                                                              dropped: 0
$                                                             rendered: 0
$
$   sync                : Sync on the clock
$                         flags: readable, writable
$                         Boolean. Default: false
$   throttle-time       : The time to keep between rendered buffers (0 = disabled)
$                         flags: readable, writable
$                         Unsigned Integer64. Range: 0 - 18446744073709551615 Default: 0
$   ts-offset           : Timestamp offset in nanoseconds
$                         flags: readable, writable
$                         Integer64. Range: -9223372036854775808 - 9223372036854775807 Default: 0

CSV Format

Following the list of information saved in the CSV file

TIMESTAMP: data timestamp in [ns].
STREAM_TYPE: type of stream acquired by zedsrc (see ZedInfo data structure).
CAM_MODEL: camera model used to acquire data (see ZedInfo data structure).
GRAB_W: width of camera frames.
GRAB_H heights of camera frames.
POSE_VAL: 1 if the camera pose is valid.
POS_TRK_STATE: status of the positional tracking algorithm (see ZedPose data structure).
POS_X_[m]: X coordinate of the camera position in [m].
POS_Y_[m]: Y coordinate of the camera position in [m].
POS_Z_[m]: Z coordinate of the camera position in [m].
OR_X_[rad]: orientation of the camera around the X axis in [rad].
OR_Y_[rad]: orientation of the camera around the Y axis in [rad].
OR_Z_[rad]: orientation of the camera around the Z axis in [rad].
IMU_VAL: 1 if IMU data are valid.
ACC_X_[m/s²]: acceleration value along the X axis in [m/s²].
ACC_Y_[m/s²]: acceleration value along the Y axis in [m/s²].
ACC_Z_[m/s²]: acceleration value along the Z axis in [m/s²].
GYRO_X_[rad/s]: angular velocity around the X axis in [rad/s].
GYRO_Y_[rad/s]: angular velocity around the Y axis in [rad/s].
GYRO_Z_[rad/s]: angular velocity around the Z axis in [rad/s].
MAG_VAL: 1 if magnetometer data are valid.
MAG_X_[uT]: magnetic field value along the X axis in [µT].
MAG_Y_[uT]: magnetic field value along the Y axis in [µT].
MAG_Z_[uT]: magnetic field value along the Z axis in [µT].
ENV_VAL: 1 if environment data are valid.
TEMP_[°C]: internal camera temperature in [°C]
PRESS_[hPa]: atmospheric pressure in [hPa]
TEMP_VAL: 1 if camera CMOS temperatures are valid.
TEMP_L_[°C]: temperature of the left CMOS sensor in [°C].
TEMP_R_[°C]: temperature of the right CMOS sensor in [°C].

Example pipelines

Sensors data logging to CSV file

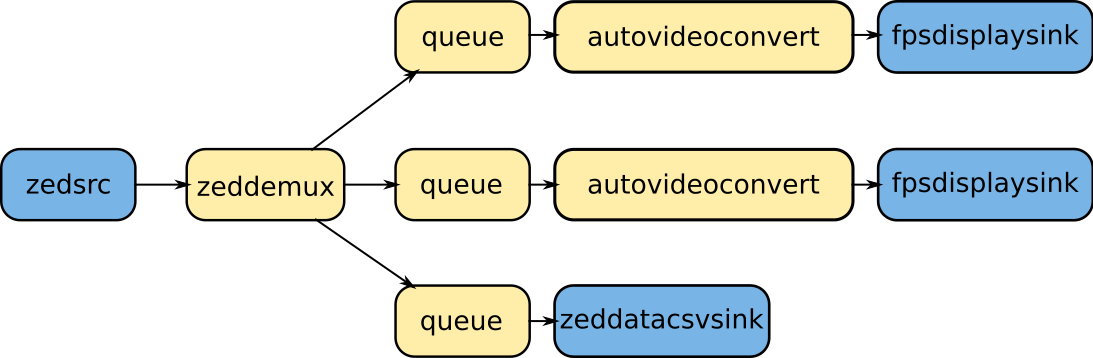

Following a pipeline to acquire a stream at default resolution with RGB and Depth data and save the sensors data to a CSV file for logging

$ gst-launch-1.0 zedsrc stream-type=4 ! \
>  zeddemux stream-data=true name=demux \
>  demux.src_left ! queue ! autovideoconvert ! fpsdisplaysink \
>  demux.src_aux ! queue ! autovideoconvert ! fpsdisplaysink \
>  demux.src_data ! queue ! zeddatacsvsink location="${HOME}/test_csv.csv" append=FALSE

a zeddemux element is required, with stream-data=true, to create a branch of the pipeline where only sensors data flow.
