The ZED Link Duo is a GMSL2 capture card with 4 GMSL2 ports on a single 4-wire FAKRA connector. It connects up to four ZED X, ZED X Mini, ZED X Nano, ZED X One GS, ZED X One S, or ZED X One 4K cameras to an NVIDIA® Jetson™ developer kit. The supported multi-camera configurations are described in each setup guide.

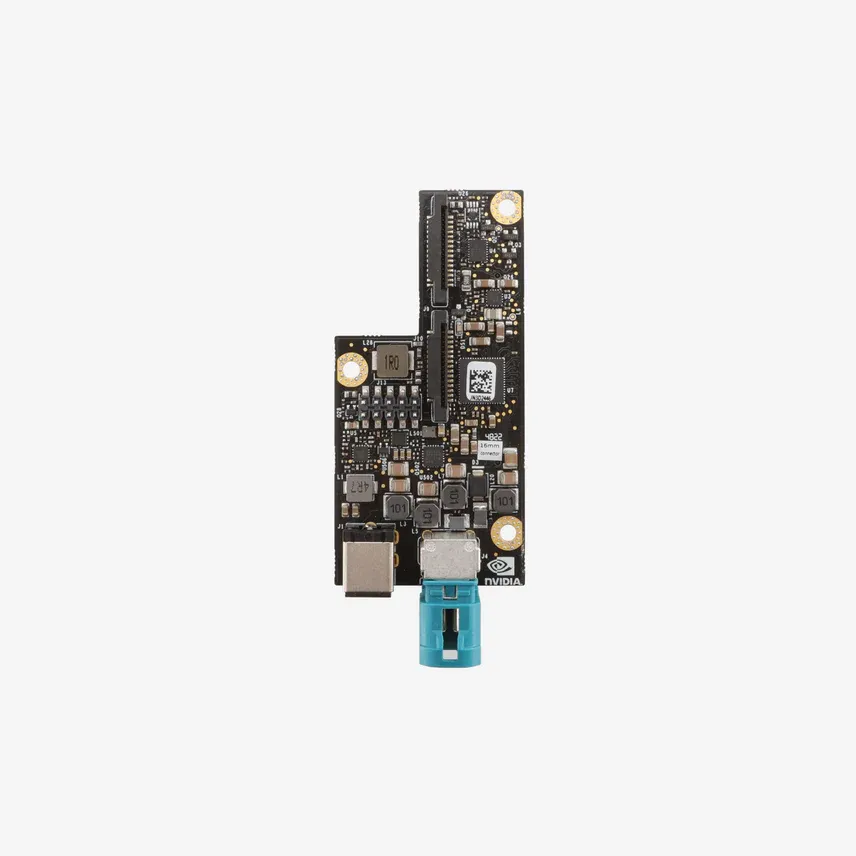

ZED Link Duo

Supported devices

Jetson™ deviceGMSL2 SupportGuide
NVIDIA® AGX Orin DevKit✔️Setup Guide
NVIDIA® Xavier AGX DevKit✔️Setup Guide
NVIDIA® Orin Nano DevKit✔️Setup Guide
NVIDIA® Xavier NX DevKit✔️Setup Guide
Other Jetson™ carrier boards-Please contact support@stereolabs.com
ZED Link Duo on AGX Orin

Install the ZED Link Duo on an NVIDIA® Jetson™ AGX Orin developer kit, then connect and test your cameras.

ZED Link Duo on Orin Nano

Install the ZED Link Duo on an NVIDIA® Jetson™ Orin Nano developer kit, then connect and test your cameras.

ZED Link Duo on Xavier AGX

Install the ZED Link Duo on an NVIDIA® Jetson™ Xavier AGX developer kit, then connect and test your cameras.

ZED Link Duo on Xavier NX

Install the ZED Link Duo on an NVIDIA® Jetson™ Xavier NX developer kit, then connect and test your cameras.

ZED Link Duo GPIO Triggering

Synchronize external sensors with your cameras through the GPIO connector of the ZED Link Duo, in master or slave mode.

Common GMSL2 guides

These guides apply to all the ZED Link GMSL2 capture cards:
