GStreamer - ZED Object Detection Overlay

The ZED Object Detection Overlay, zedodoverlay GStreamer element, is a transform filter that allows drawing object detection bounding boxes on a ZED left color video stream. The incoming data stream must contain ZED Metadata. You can use the zeddatamux element to add back metadata to a ZED video stream in case a GStreamer filter removes them.

The source code of this plugin is a complete example of how to process the ZED metadata in a GStreamer element to retrieve object detection data.

Properties

The element defines no specific property. gst-inspect-1.0 zedodoverlay reports the qos property inherited from GstBaseTransform, plus the name and parent properties inherited from GstObject:

  name                : The name of the object
                        flags: readable, writable, 0x2000
                        String. Default: "zedodoverlay0"
  parent              : The parent of the object
                        flags: readable, writable, 0x2000
                        Object of type "GstObject"
  qos                 : Handle Quality-of-Service events
                        flags: readable, writable
                        Boolean. Default: false

Example pipelines

Display Object Detection bounding boxes

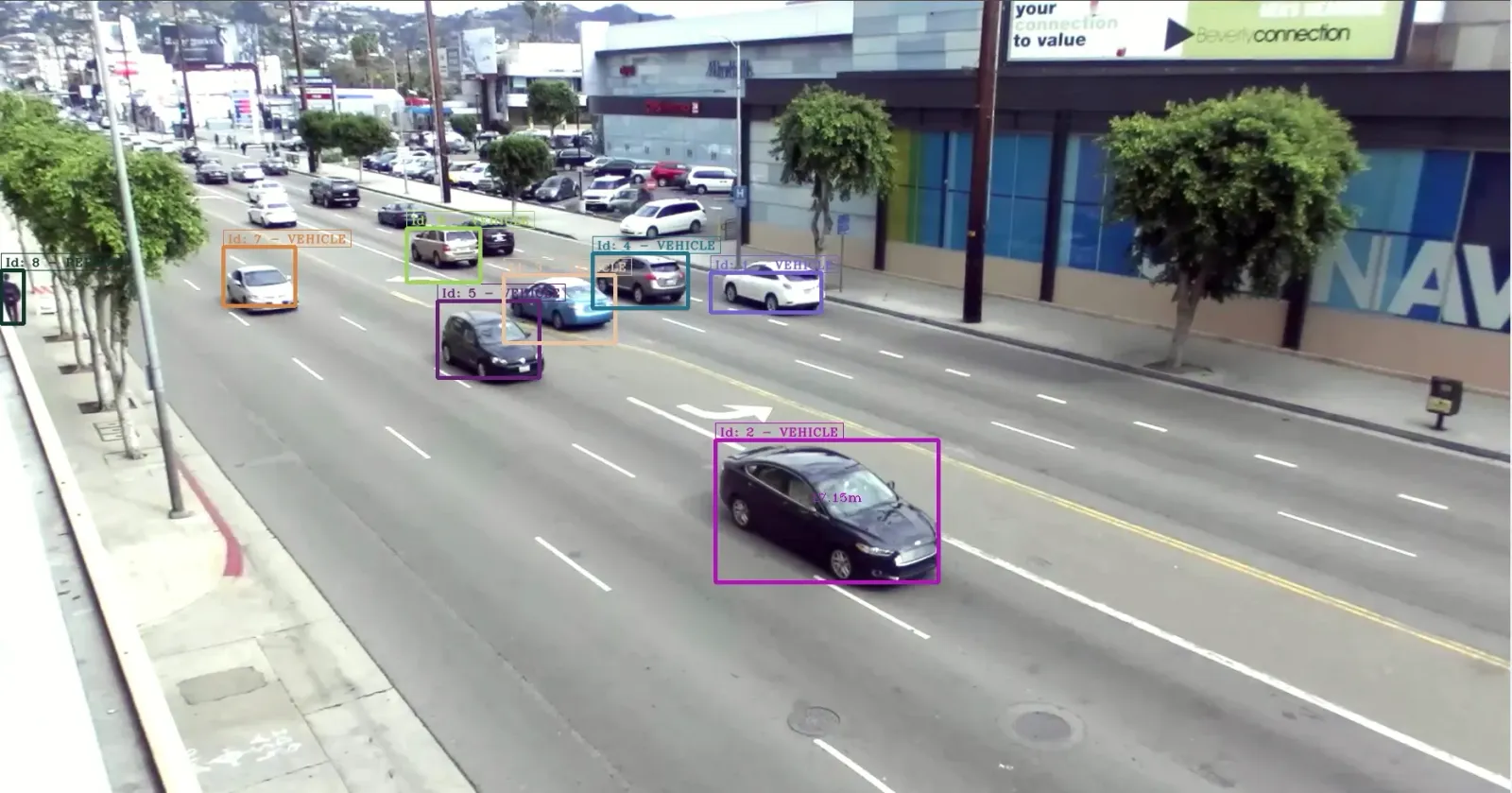

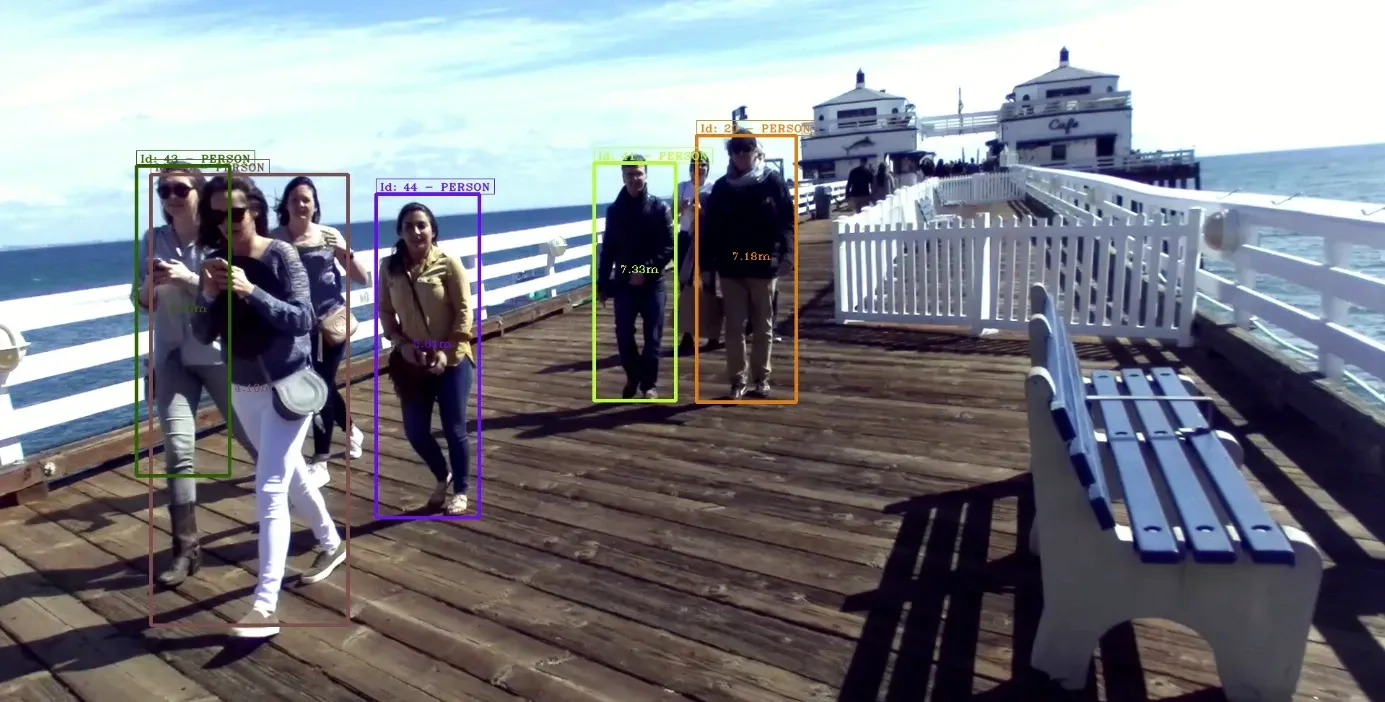

The following is a pipeline to acquire a stream at 720p resolution with RGB and MULTI CLASS Object Detection information and display the results on screen:

gst-launch-1.0 zedsrc stream-type=0 od-enabled=true od-detection-model=0 camera-resolution=3 camera-fps=30 ! queue ! \
zedodoverlay ! queue ! autovideoconvert ! fpsdisplaysink

Display Skeleton Tracking results

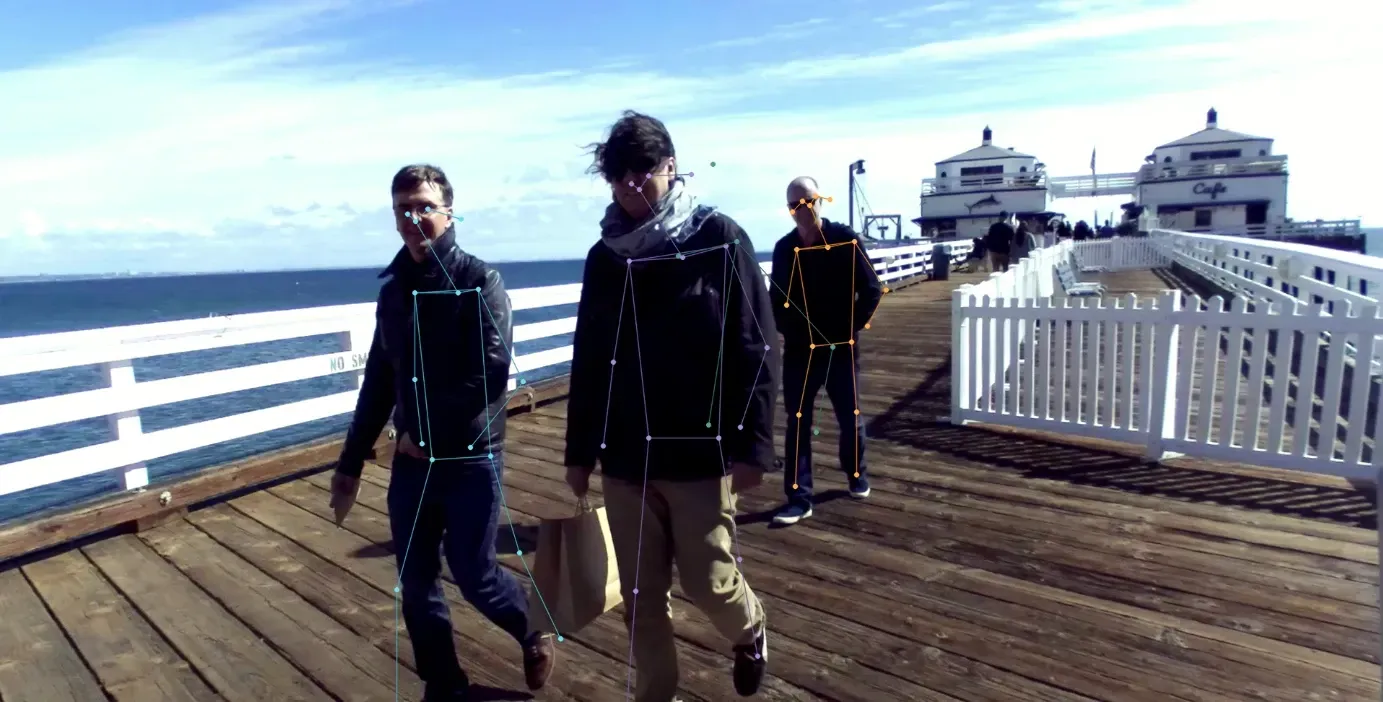

The same pipeline of the previous example can be used to display Skeleton Tracking results by enabling Body Tracking on the zedsrc element with bt-enabled=true and selecting the model with the bt-detection-model property (2 is the ACCURATE model):

gst-launch-1.0 zedsrc stream-type=0 bt-enabled=true bt-detection-model=2 camera-resolution=3 camera-fps=30 ! queue ! \
zedodoverlay ! queue ! autovideoconvert ! fpsdisplaysink
